FILTER BREATHER


Combination unit for filtering air passing in to the reservoir and straining oil while filling the reservoir.
All the Models are readily available.
Dirt holding capacity is excellent due to special filtration Media used.
40 micron element standard 10 micron available as option.
M5 x 15 mm length 6 Nos Mounting screws are supplied without any extra cost.
Application Include - Mobile and Earth moving Equipments plastic Machinery, and Industrial Machine Tools etc.

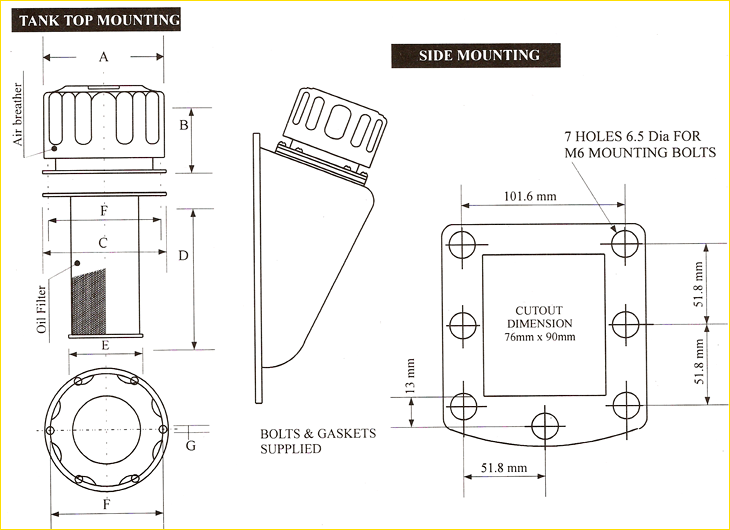

DIMENSIONAL DETAILS

PART NO MODEL MICRON AIR FLOW A B C D E F G
2120 FBST-750L-40M 40 750LPM 78 57 80 90 48 73 6.5
2140 FBST-250L-40M 40 250LPM 44 48 50 65 30 41.3 6.0
