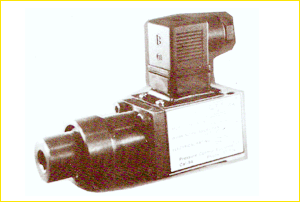

PRESSURE SWITCH

3 Models are available according to operating pressure setting.

Basic design is same for all the Models only different springs are used to obtain different pressure range.

Pressure switch is must for every Hydraulic circuit to protect the system component from excess Pressure and to work on required pressure Range.





PRESSURE SETTING IN Kg / Cm'

PART NO MODEL MAX- PRESSURE
2000 PS-50 50 Kg /Cm2
2010 PS - 100 100 Kg /Cm2
2020 PS-350 350 Kg /Cm2
