OIL LEVEL INDICATOR

SALIENT FEATURES

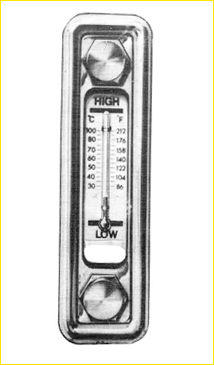

Fluid level indicators are available with or without temperature indicator both in centigrade and Fahrenheit readings.
The unit is supplied with gasket (Nitrile seal) and mounting bolts and nuts.
Nuts and bolts are plated to prevent from corrosion.
Working pressure up to 1 kg/cm2
Can be installed on the reservoir wall, requires only two mounting holes. Sturdy low profile outer case available chrome plated, powder coated and also stainless steel.
Specially designed to provide extra large sight area and no breakable magnifier glass.
Extra thick gasket ensures absolute leak proof at all working conditions
Special modification can be done as per customer's requirement.

APPLICATION

This fluid level Indicators have wide range of application in many industries such as agriculture equipments, automotive cranes, earth moving equipments, fork lift trucks, marine mechanical handling, mining, industrial power units, water coolant tanks etc.


DIMENSIONAL DETAILS IN mm

PART NO. MODEL A B D F Mtg. BOLT FIXING HOLE TEMP RANGE °C MAX. TANK WALL THICKNESS
0560 FLI-3 115 40 76 42 M10X1.5P 11   8
0570 FLIT-3 115 40 76 42 M10X1.5P 11 30 to 80 8
0580 FLI-5 178 66 127 52 M12X1.75P 13   12
0590 FLIT-5 178 66 128 52 M12X1.75P 13 30 to 80 12
